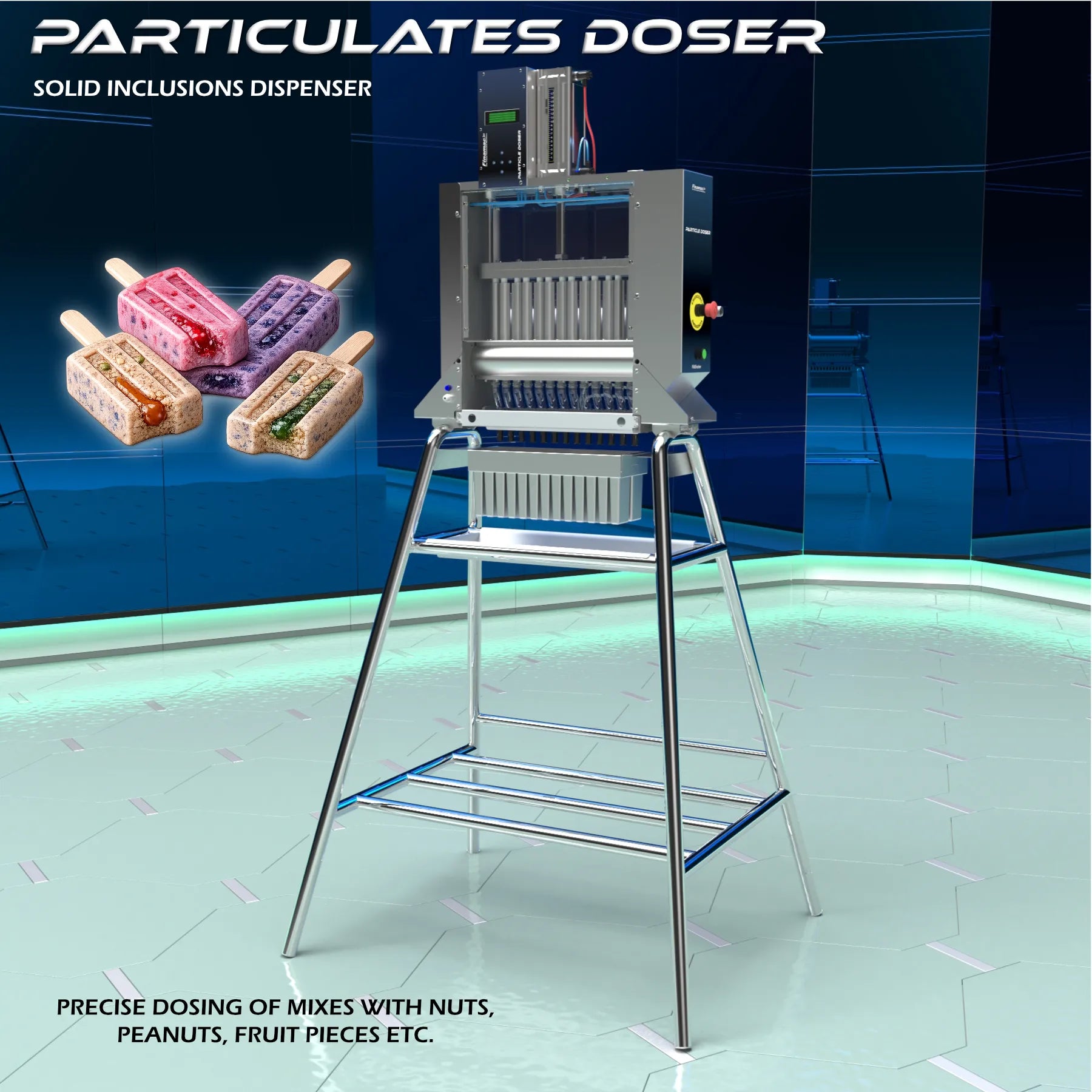

Automated solution for precise dispensing of particulates into ice pop and flavored ice molds.

This automated dispenser ensures accurate volumetric filling of molds, with flexible adjustment of the dispensed volume to meet different production needs.

When integrated with an additional dispenser on the same ice pop machine, it enables the production of popsicles with two or more flavors, adding versatility and value to your product line.

Connected to a mixing tank and a compressed air system, this equipment significantly optimizes the mold feeding process, making it ideal for medium-scale production with higher efficiency and consistency.

Designed to mount directly on top of industrial ice pop machines such as the Turbo 80, Turbo 100, and Popline, enabling a fully automated dosing solution where the molds never leave the machine throughout the entire production process.

Advantages:

Ideal for mixtures containing small particulates, such as shredded coconut, crushed passion fruit seeds, and similar ingredients.

Volumetric dosing with adjustable capacity from 5 to 77 ml per cavity.

Compatible with all popsicle machine models featuring automatic mold movement.

Reduces production labor requirements by up to 50%.

Allows the manufacture of popsicles with two or more flavors, expanding product variety.

For non-automated equipment, it can be used with a support stand, eliminating the need for permanent machine installation.

* All units are supplied with a centrifugal pump. Alternative pump options are available upon request.

** Specifications refer exclusively to the electropneumatic components of the dispenser. Pump power: 1 HP (0.74 kW).

*** Maximum particle size: 6 mm.

**** For larger-volume molds, the dispenser can perform multiple dosing cycles per mold.

Technical Specifications

Wattage: 0.4 kW. Air consumption: 11.5 L/min

Crate Dimensions: ---

"

Equipment Dimensions: Equipment Dimensions – With Frame: Width = 1300 mm / 51.18 in Height = 1550 mm / 61.02 in Length = 1300 mm / 51.18 in Equipment Dimensions – Without Frame: Width = 740 mm / 29.13 in Height = 1080 mm / 42.52 in Length = 890 mm / 35.04 in

"

Gross Weight, With Crate: 110 kg (with frame) – 101 kg (without frame)

Net Weight: 102 kg (with frame) – 95 kg (without frame)

Production Capacity: Volumetric dosing. Adjustable from 5 to 77 ml per cavity
