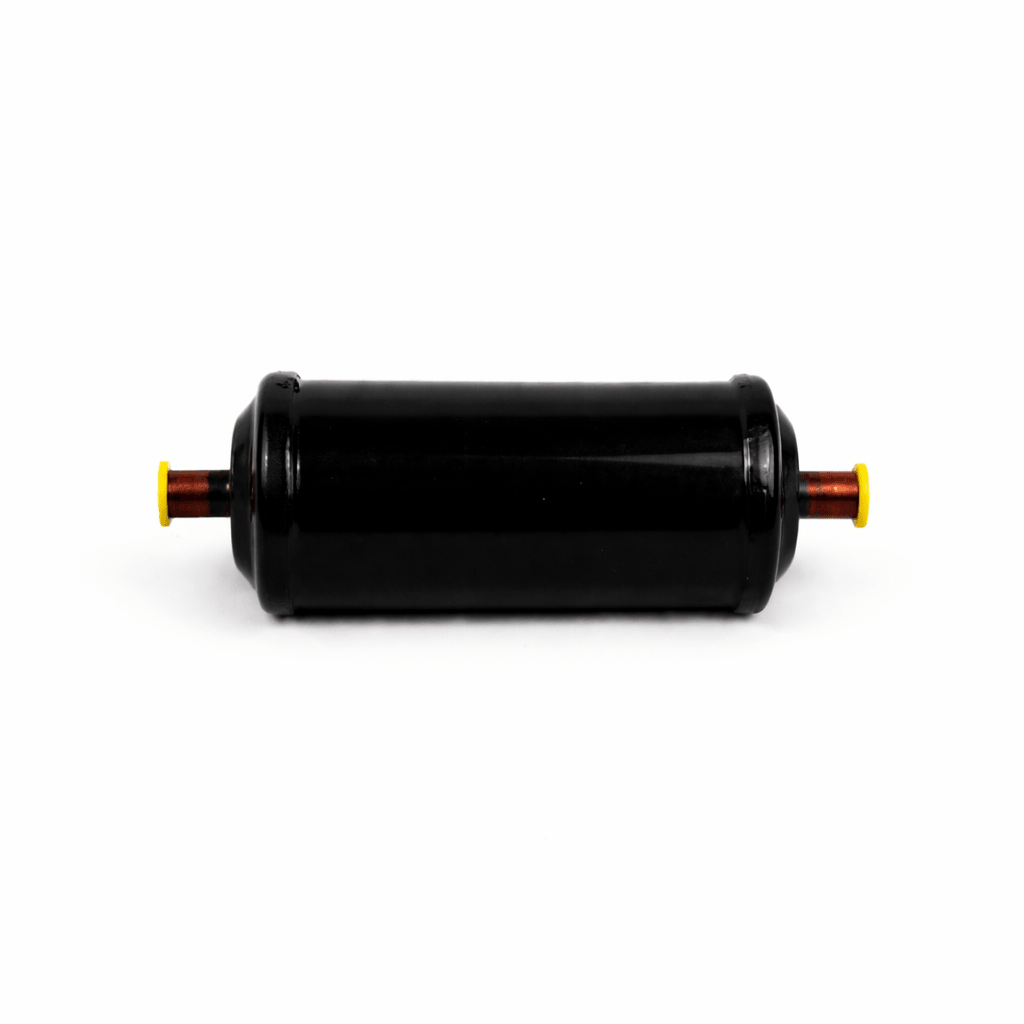

Finamac PRO 16 Black, Super C, Super C Plus, and Super C3 Ice Cream Machines
Position in Refrigeration Circuit
Liquid Line (Between the condenser and expansion valve)
Main Function
Absorbs moisture and filters contaminants from the refrigerant
Part Type
Original Finamac Refrigeration Replacement Part / Refrigeration Component
⚠️ SAFETY AND PREVENTIVE MAINTENANCE ALERT
FILTER DRIER REPLACEMENT PRECAUTIONS
Mandatory Replacement During Refrigeration Service: The filter drier must be replaced with a new one whenever the refrigeration system is opened for service, including compressor replacement, valve replacement, or refrigerant leak repairs. Replacement must be performed by a qualified refrigeration technician.
Proper Brazing Procedure: Installation requires proper brazing techniques with a continuous nitrogen purge to help prevent internal oxidation and scale formation inside the tubing.
Check Refrigerant Flow Direction: Observe the flow-direction arrow marked on the filter drier body during installation. Installing the filter in the incorrect direction may compromise proper operation and filtration performance.
Vacuum Procedure: After replacing the filter drier, perform a complete evacuation of the refrigeration system using an appropriate vacuum pump before charging the system with refrigerant.
💬 QUESTIONS?
CONTACT OUR TECHNICAL SUPPORT TEAM
If you have any questions about whether this is the correct part for your equipment, please contact Finamac Technical Support via WhatsApp:
