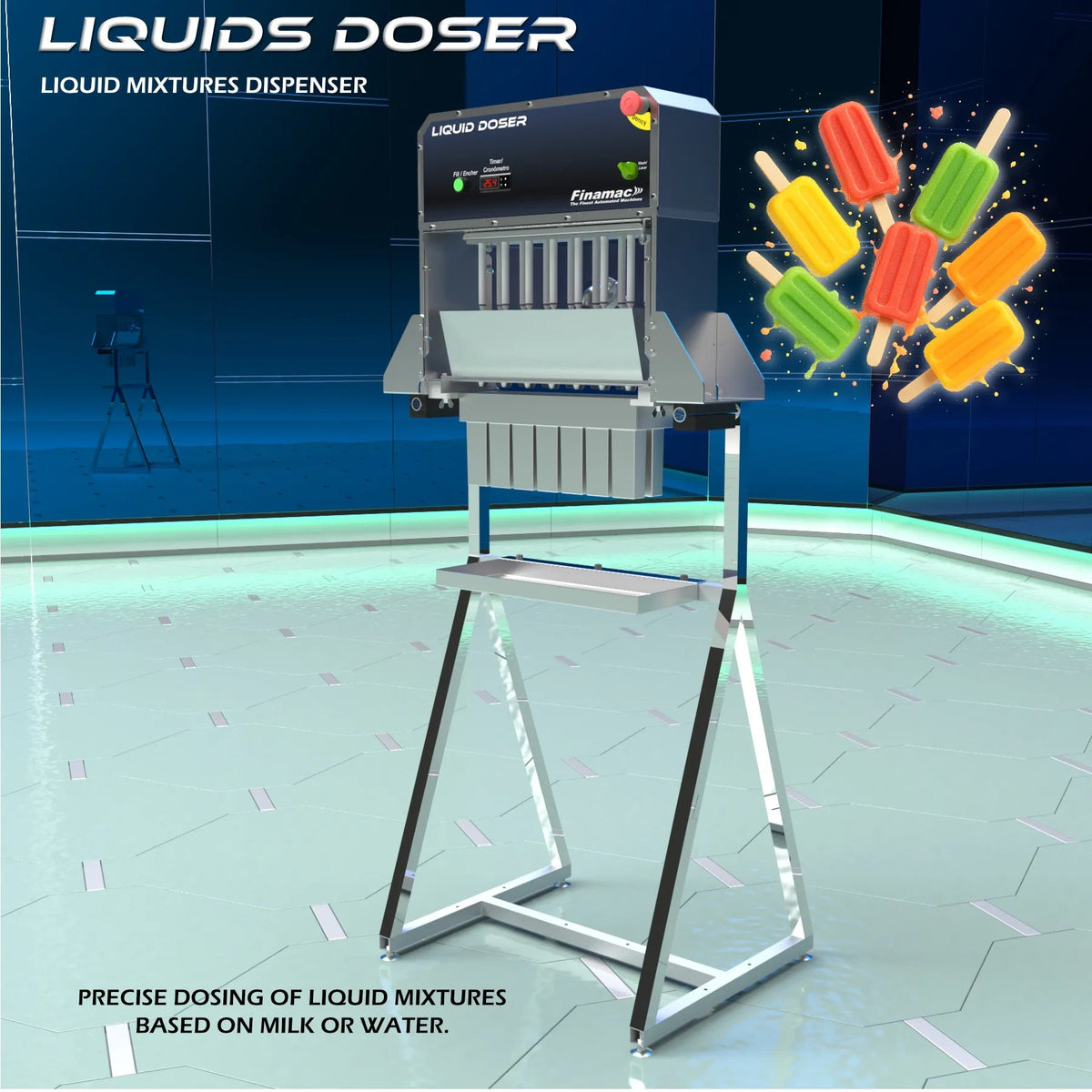

An automated machine for dispensing ice pop mixture (water or milk based) into ice pop molds.

Provides volumetric dosage for the molds, with the possibility of changing the volume.
Aligned with another doser into the same ice pop machine allows for the production of ice pops containing two or more flavors/layers.

Connected to a tank containing the mixture and a compressed air system, this device eases the enormous process of feeding the molds into a medium-scale producer.

Designed to mount directly on top of industrial ice pop machines such as the Turbo 80, Turbo 100, and Popline, enabling a fully automated dosing solution where the molds never leave the machine throughout the entire production process.

Advantages:

1. Allows the dosage of liquid mixture wether its milk or water base.

2. Fits all ice pop machines equipped with automatically moving molds.

3. Reduces half of the workforce employed for production.

4. Enables the production of ice pops containing two or more flavors.

5. Can be used to support non-automated equipment, with no special installation requirements.

Technical Specifications

Wattage: 0,1 kW

"

Crate Dimensions: Liquid Doser N/Structure: Width: 740 mm / 29.13 in, Height: 1080 mm / 42.52 in, Length: 890 mm / 35.04 in Liquid Doser W/Structure: Width: 1245 mm / 49.02 in, Height: 1485 mm / 58.46 in, Length: 1245 mm / 49.02 in Particle Doser W/Structure: Width: 1300 mm / 51.18 in, Height: 1550 mm / 61.02 in, Length: 1300 mm / 51.18 in Particle Doser N/Structure: Width: 740 mm / 29.13 in, Height: 1080 mm / 42.52 in, Length: 890 mm / 35.04 in Filling Doser N/Structure: Width: 740 mm / 29.13 in, Height: 1080 mm / 42.52 in, Length: 890 mm / 35.04 in

" "

Equipment Dimensions: Liquid Doser W/Structure: Width: 1150 mm / 45.28 in, Height: 1350 mm / 53.15 in, Length: 1150 mm / 45.28 in Liquid Doser N/Structure: Width: 650 mm / 25.59 in, Height: 940 mm / 37.01 in, Length: 800 mm / 31.5 in Particle Doser W/Structure: Width: 1150 mm / 45.28 in, Height: 1350 mm / 53.15 in, Length: 1150 mm / 45.28 in Particle Doser N/Structure: Width: 650 mm / 25.59 in, Height: 940 mm / 37.01 in, Length: 800 mm / 31.5 in Filling Doser N/Structure: Width: 650 mm / 25.59 in, Height: 940 mm / 37.01 in, Length: 800 mm / 31.5 in

"

Gross Weight, With Crate: ---

Net weight: 48 kg / 105,82 lbs

Production Capacity: Minimum dosing volume: 20 ml (0.01 gal) / cavity. Maximum dosing volume: 75 ml (0.02 gal) / cavity. Air consumption: 3.7 liters (0.98 gal) / minute
