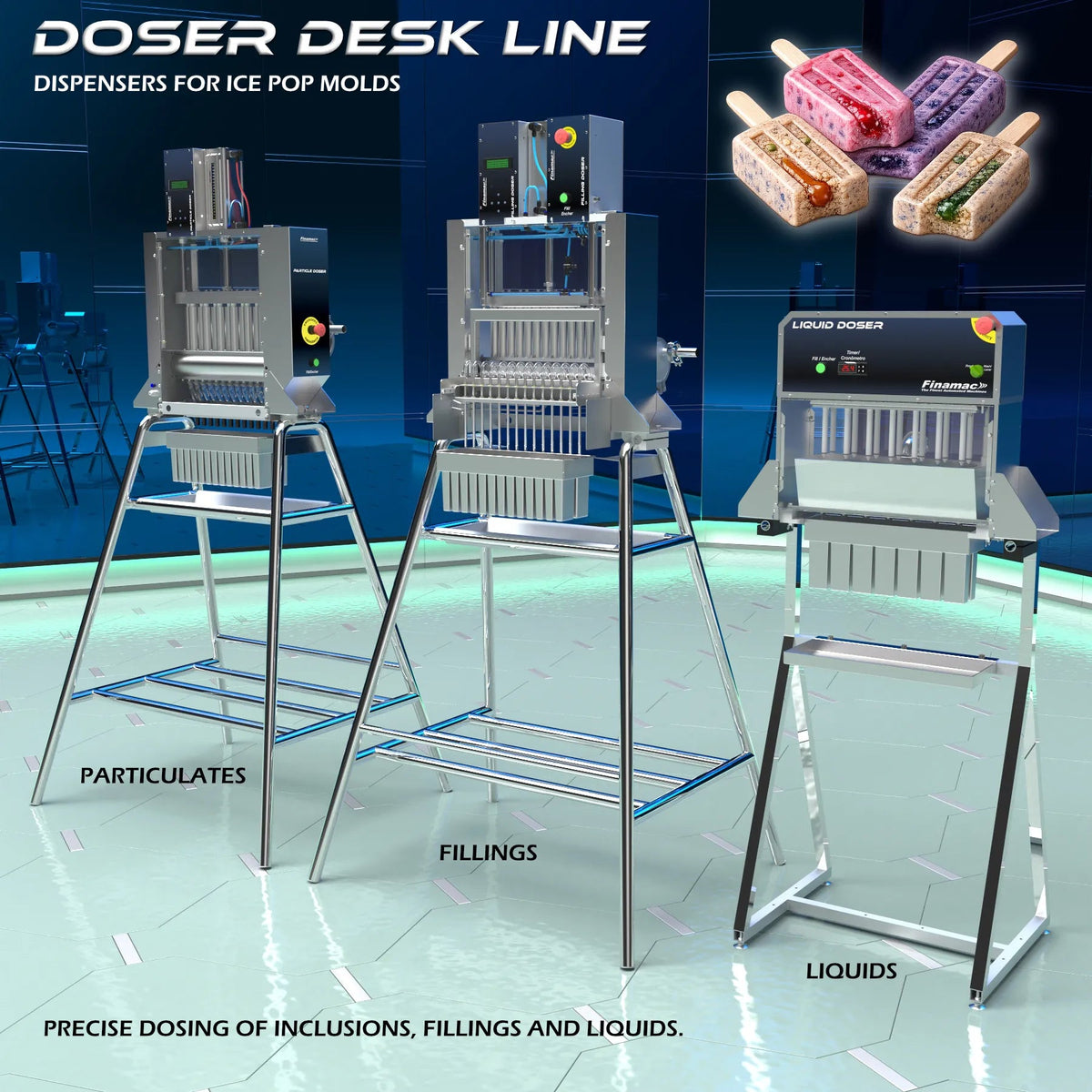

Automated equipment designed to dispense fillings into ice pop and flavored ice molds.

Provides volumetric dosing of the molds, with adjustable dispensed volume options.

Connected to a tank containing the mixture and to a compressed air system, this device significantly facilitates the mold feeding process in medium-scale production operations.

Designed to mount directly on top of industrial ice pop machines such as the Turbo 80, Turbo 100, and Popline, enabling a fully automated dosing solution where the molds never leave the machine throughout the entire production process.

Advantages:

Volumetric dosing from 5 to 50 ml per cavity with each piston actuation.

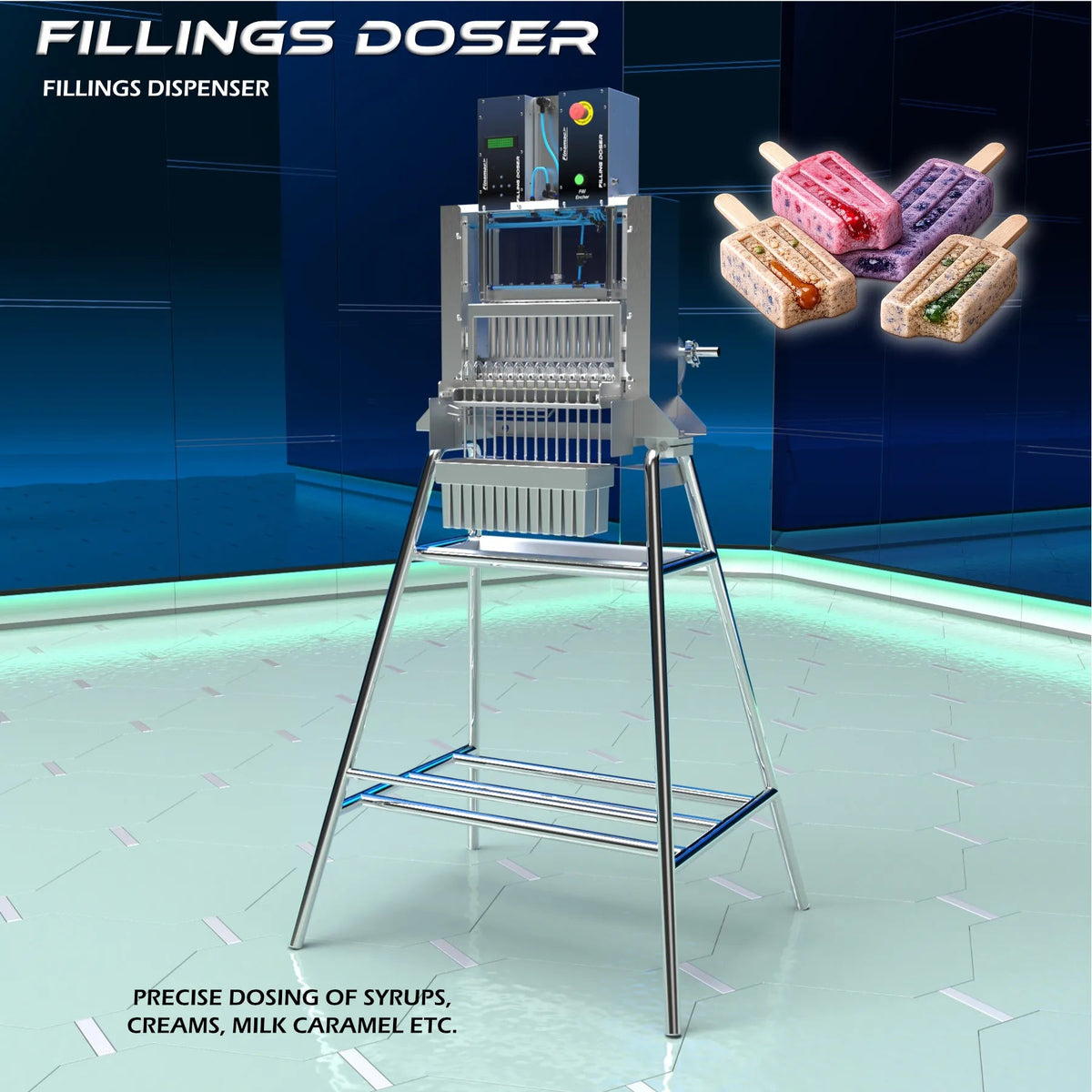

Ideal for liquid or viscous fillings such as condensed milk.

Compatible with all popsicle machine models featuring automatic mold movement.

Reduces production labor requirements by up to 50%.

Allows the production of popsicles with two or more flavors.

For non-automated equipment, it can be used with a support stand, without requiring installation on the machine.

* Specifications consider only the electropneumatic components of the dispenser. Pump power: 1 HP (0.74 kW).

** For larger-volume molds, the dispenser can perform more than one dosing cycle per mold.

Technical Specifications

Wattage: 0.4 kW. Air consumption: 11.5 L/min

Crate Dimensions: ---

"

Equipment Dimensions: Equipment Dimensions – With Frame: Width = 1300 mm / 51.18 in Height = 1550 mm / 61.02 in Length = 1300 mm / 51.18 in Equipment Dimensions – Without Frame: Width = 740 mm / 29.13 in Height = 1080 mm / 42.52 in Length = 890 mm / 35.04 in

"

Gross Weight, With Crate: 97 kg (with frame) – 88 kg (without frame)

Net weight: 90 kg (with frame) – 83 kg (without frame)

Production Capacity: ---
