Finamac LLC

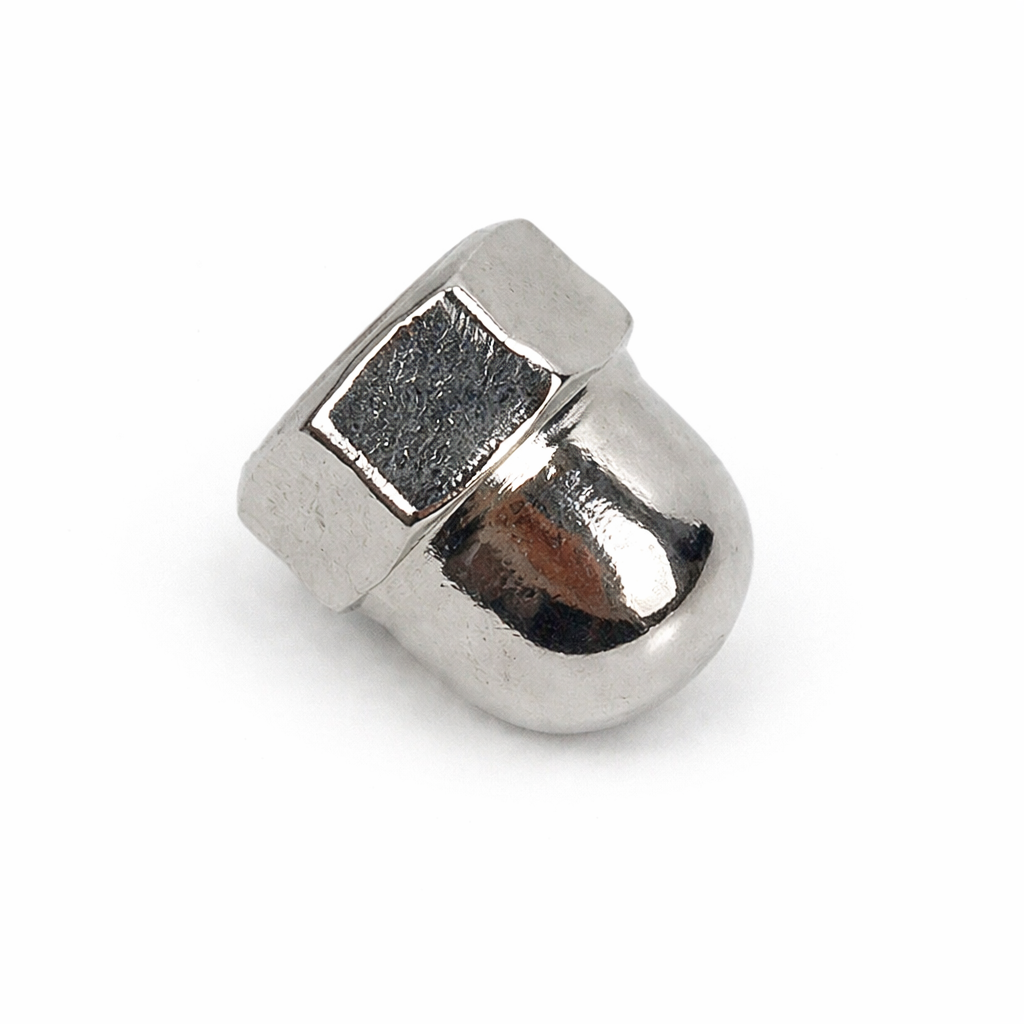

M6 CAP NUT – PUMP ASSEMBLY FOR SUPER C / SUPER C3 / SUPER C PLUS

Illustrative Image *

$1.28

Sale Sold out

🏭 Production time: 5 weeks

Specification	Details
Compatible Equipment and Serial Numbers	Finamac Super C3 (Serial No. 120 and above), Super C (Serial No. 173 and above), and Super C Plus (Serial No. 105 and above)
Thread / Size	M6 (6 mm Metric)
Application	Secures and fastens the ice cream mix pump assembly
Part Type	Original Finamac Mechanical / Fastening Replacement Part

⚠️ USE AND PREVENTIVE MAINTENANCE ALERT

PUMP ASSEMBLY FASTENING PRECAUTIONS

Check the Serial Number: Confirm the serial number shown on your machine’s identification plate before purchasing. Machines with serial numbers earlier than those listed above may have differences in thread pitch or stud diameter.

Proper Tightening and Torque: Tighten the cap nuts gradually in a cross-pattern to distribute pressure evenly across the pump gaskets and assembly. Avoid excessive force, as overtightening may strip the stud threads or damage the pump housing.

Periodic Cleaning: Remove the cap nuts during complete pump disassembly and cleaning to ensure that dried ice cream mix residue does not accumulate inside the nut cavity.

Technical Identification Note

The part identified as No. 1 (or Item 1) in the technical drawing / exploded view shown in this listing is the M6 Cap Nut, for Super C3 (Serial No. 120 and above) and Super C (Serial No. 173 and above).

The part identified as No. 1 (or Item 1) in the technical drawing / exploded view shown in this listing is the M6 Cap Nut, for Super C Plus (Serial No. 105 and above).

💬 QUESTIONS?

CONTACT OUR TECHNICAL SUPPORT TEAM

To make sure you are purchasing the correct component for your machine’s model, year, and serial number, our technical team is available to assist you.

If you have any questions before completing your purchase, contact Finamac Technical Support directly via WhatsApp:

📲 WhatsApp: +55 (11) 91306-9575

Please have your machine model and, if possible, the serial number available to help us provide faster and more accurate assistance.

SKU:003850
