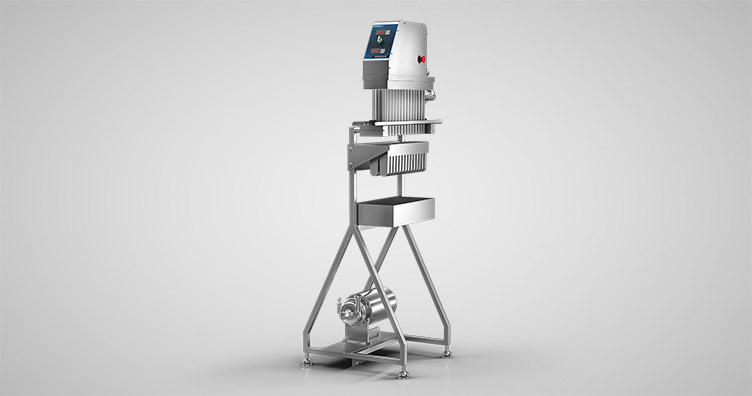

Turbo Doser - Automatic Dosing Of Ice Pop Molds

  • Picolé
  • Gelo de Coco
About Turbo Doser - Automatic Dosing Of Ice Pop Molds
Videos
Suggested Use
Advantages
Technical data
An automated machine for dispensing popsicle mixture (water or milk based) into popsicle moulds.

Provides volumetric dosage for the moulds, with the possibility of changing the volume.

Aligned with another feeder into the same ice pop machine allows for the production of ice pops containing two or more flavors (i.e. Neapolitan, mini skirt, etc.).

Connected to a tank containing the mixture and a compressed air system, this device eases the enormous process of feeding the moulds into a medium scale producer.



Turbo Doser Spec Sheet

Benefits

Our differential is your satisfaction.

When purchasing our products, we guarantee excellence in quality and support.
We provide after sales with qualified and dedicated specialists.

Turbo 100 + 1 Turbo Doser.

Turbo 100 + 2 Turbo Doser.

Turbo 100 + 3 Turbo Doser.

Turbo 200 + 1 Turbo Doser .

200 + Turbo 2 Turbo Doser.

Turbo 200 + 3 Turbo Doser.

Turbo 25 + 1 Turbo Doser.

1. Allows the dosage of small-sized particle ingredients, such as grated coconut, crushed passion fruit seeds, etc.

2. Fits all ice pop machines equipped with automatically moving moulds.

3. Reduces half of the workforce employed for production.

4. Enables the production of ice pops containing two or more flavors.

5. Can be used to support non-automated equipment, with no special installation requirements.
Technical Details
Consumption of electricity
0.1 kW
Dimensions
Equipment Dimensions

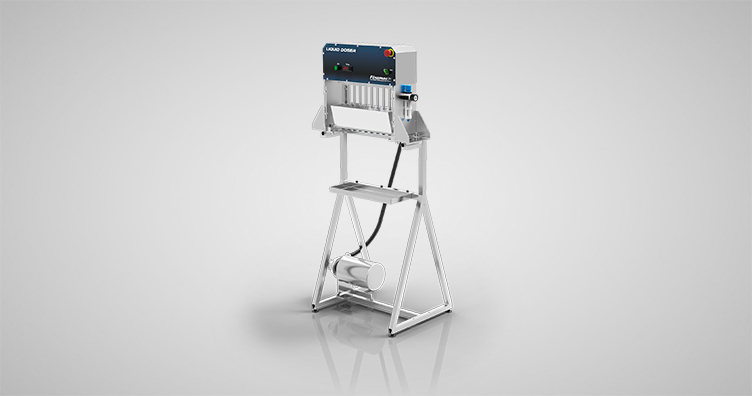

Liquid Doser W/Structure: Width: 1245 mm / 49.02 in, Height: 1485 mm / 58.46 in, Length: 1245 mm / 49.02 in
Crate dimensions
Liquid Doser N/Structure: Width: 740 mm / 29.13 in, Height: 1080 mm / 42.52 in, Length: 890 mm / 35.04 in
Crate dimensions

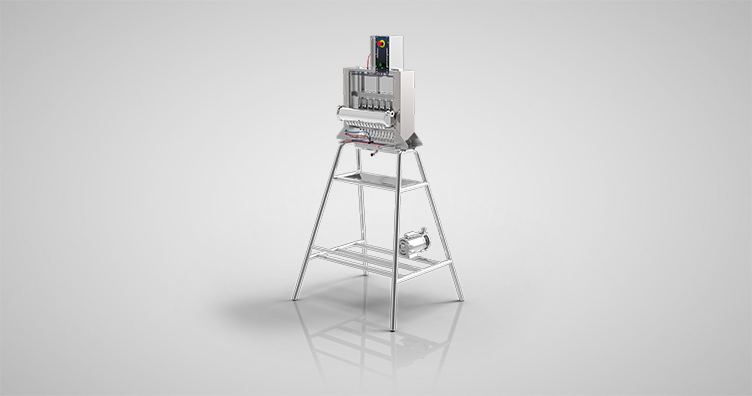

Particle Doser W/Structure: Width: 1300 mm / 51.18 in, Height: 1550 mm / 61.02 in, Length: 1300 mm / 51.18 in
Crate dimensions
Particle Doser N/Structure: Width: 740 mm / 29.13 in, Height: 1080 mm / 42.52 in, Length: 890 mm / 35.04 in
Crate dimensions

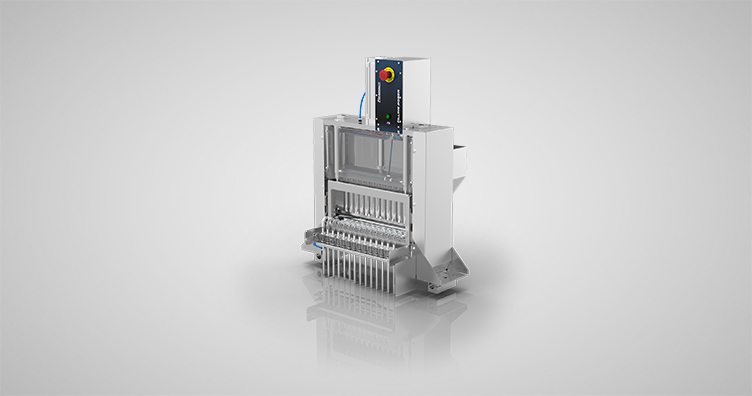

Filling Doser N/Structure: Width: 740 mm / 29.13 in, Height: 1080 mm / 42.52 in, Length: 890 mm / 35.04 in
Equipment Dimensions
Liquid Doser W/Structure: Width: 1150 mm / 45.28 in, Height: 1350 mm / 53.15 in, Length: 1150 mm / 45.28 in
Equipment Dimensions
Liquid Doser N/Structure: Width: 650 mm / 25.59 in, Height: 940 mm / 37.01 in, Length: 800 mm / 31.5 in
Equipment Dimensions
Particle Doser W/Structure: Width: 1150 mm / 45.28 in, Height: 1350 mm / 53.15 in, Length: 1150 mm / 45.28 in
Equipment Dimensions
Particle Doser N/Structure: Width: 650 mm / 25.59 in, Height: 940 mm / 37.01 in, Length: 800 mm / 31.5 in
Equipment Dimensions
Filling Doser N/Structure: Width: 650 mm / 25.59 in, Height: 940 mm / 37.01 in, Length: 800 mm / 31.5 in
Weight
Net Weight
48 kg / 105.82 lbs
Production
Production Capacity
Minimum dosing volume: 20 ml (0.01 gal) / cavity. Maximum dosing volume: 75 ml (0.02 gal) / cavity. Air consumption: 3.7 liters (0.98 gal) / minute
