Products

Turbo Combo: Artisanal Ice Pop Producers, Cooling Towers, Freezing, Mix Preparation and Crushers, Mixers, Packaging and Filling, Sealing Machine

  • Picolé
  • Gelo de Coco
Set of Machines to Produce Ice Pops
750-900 ice pops/h; or up to 300 coconut water bars/h
Ask for a quote
  • American Approved Certification
  • Eficiência Energética
  • Não usa Fluidos Inflamáveis
  • Nova Linha Black Geração
  • Eco
About Turbo Combo: Artisanal Ice Pop Producers, Cooling Towers, Freezing, Mix Preparation and Crushers, Mixers, Packaging and Filling, Sealing Machine
Videos
Suggested Use
Advantages
Technical data

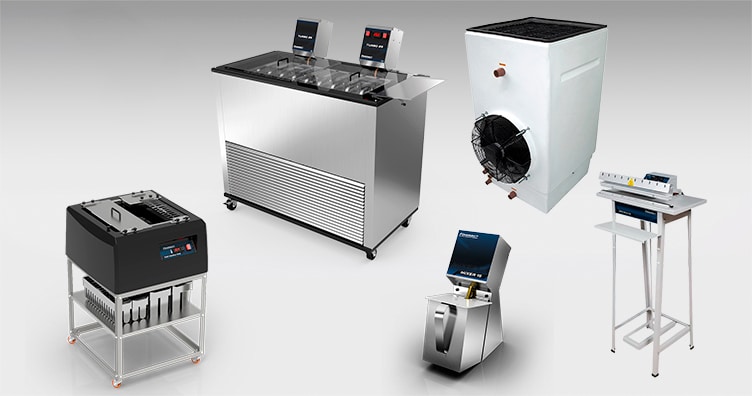

Turbo Combo is a complete set of machines for facilitating the speedy process of producing ice pops.

The set consists of:

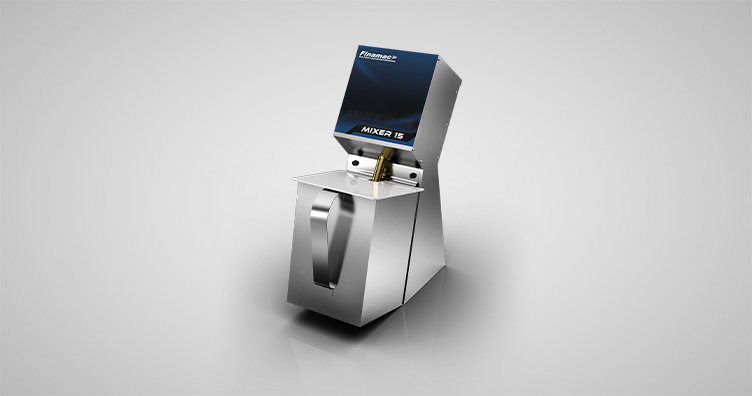

1. Blender / Mixer Emulsor 15: With a capacity to beat up to 8 liters / 2 gallons of syrup, the mixer 15 is intended for small producers who are just starting out in this business, or professionals who wish to increase their production and profitability. Its patented helix leaves the milk mixture well homogenized and with a greater incorporation of air, causing softer popsicles and more profitable. Mixer 15 incorporates 10% - 20% of air into the mixture, providing greater efficiency in production and thus increases profitability. All these features guarantee top quality, not only in appearance, but also in texture, flavor, color, aeration, preservation, resistance to melting, and other features easily perceived by the most discerning customers. This device is easy to operate, install, and transport.

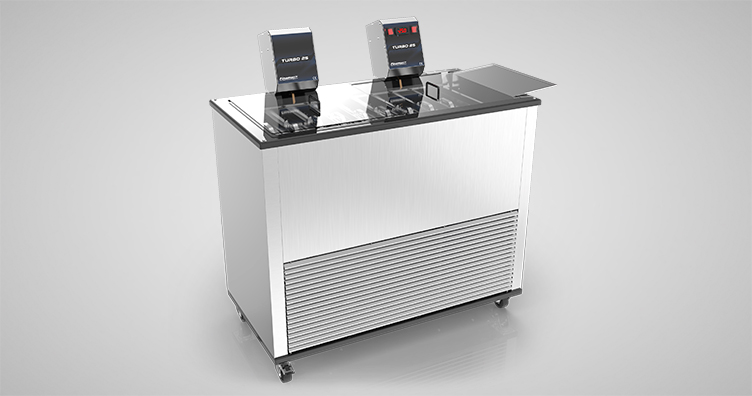

2. Producer Popsicles Turbo 25: A semi-automatic machine that manufactures water or milk-based popsicles, working with commercial three-phase energy.. The Turbo 25 helps many entrepreneurs start a promising business. It is also designed for professionals who wish for a modular increase in production, with the ability to add more equipment as needed. This machine occupies 60% less space used by conventional equivalent equipment. The Turbo 25 is unsurpassed when it comes to delivering successful results for experienced leaders in the ice cream industry. It is fast, convenient, and requires no prior knowledge about making popsicles. It’s easy to operate, install, and transport.

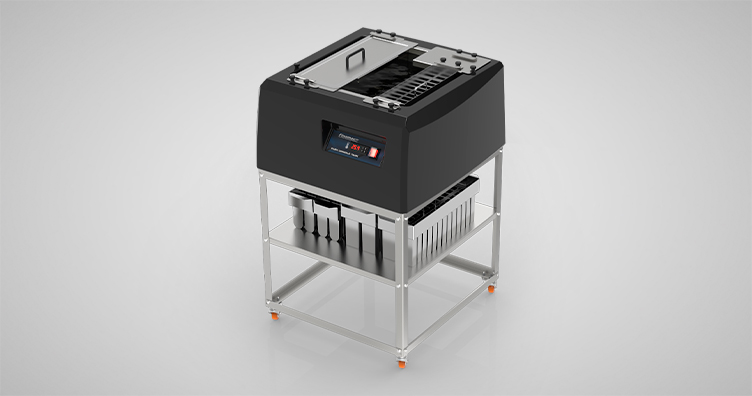

3. Flex Unmold Tank: It consists of a tank of warm water where the ice pops are placed for a few seconds and the temperature is controlled electronically. The thermally controlled process of the ice pop mold being dipped into the tank for a few seconds causes a heat shock that

allows the ice pops to be loosened from their molds almost instantly.

The tank can be used with or without a stainless steel base (optional). If used without base, it can be placed directly on a workbench or used as a table top.

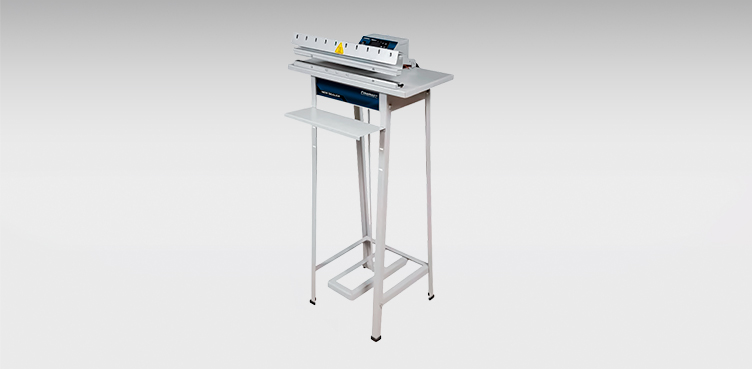

4. Sealing: A compact machine used in several segments. The treadle drive leaves your hands free to work with the products. Has the capacity seal up to a width of 20 cm / 7.87 in. Works well with clear polypropylene plastics, laminated, bio-oriented, etc. It has several advantages, such as being extremely economical - it only requires an average of 0.30 kW / h.

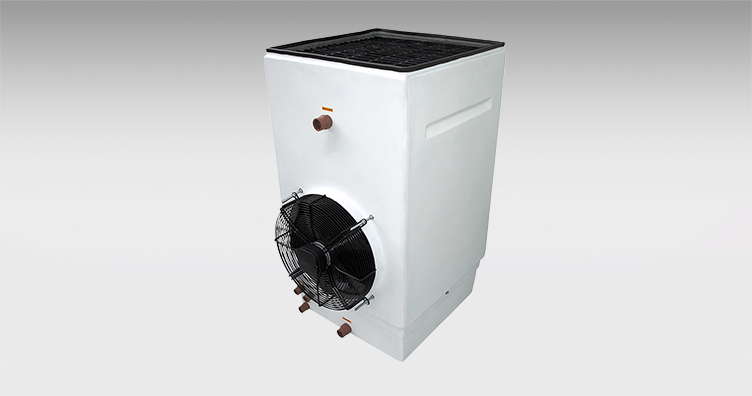

5. TR 5/10: Water cooling tower It is an indispensable accessory that removes the heat generated by machines used to make ice-cream and popsicles.
Provides maximum performance to your ice-cream/popsicle machines, even on the hottest days and prolongs life of equipment by maintaining good working condition within controlled temperatures.

*Production depends on the climatic conditions of the location where the machine is installed. Depending on the shape mold brand, the machine capacity can range from 9 or 10 28-cavity shape molds.

* Images merely illustrative. The quantity and type of moulds may vary, as may the model of the unmolder.

*Please check the laws in your country about food preparation before finish your purchase.



Water condensation equipment: requires a cooling tower.



Mixer 15 Spec Sheet

Turbo 25 Spec Sheet

Flex Unmold Tank Spec Sheet

Sealer Spec Sheet

TR 5 Spec Sheet

TR 10 Spec Sheet

Benefits

Our differential is your satisfaction.

When purchasing our products, we guarantee excellence in quality and support.
We provide after sales with qualified and dedicated specialists.

A complete set of machines for manufacturing ice pops. It also provides the ability to produce various other products, such as skimo, half chocolate coating, Napolitan (3 flavours), and decorated popsicles.

With the addition of just a few accessories, several more products can be made: ice cream bonbons/chocolate coating, free stick ice cream, and models with different shapes.

Technical Details
Electrical Installation
Turbo 25: 220 V or 380 V, Triphase, 50 Hz or 60 Hz.
Consumption of electricity
Turbo 25: 4.5 kW.
Electrical Installation
Flex Unmold Tank: 220 V, Single-phase, 60 Hz
Consumption of electricity
Flex Unmold Tank: 9 kW.
Electrical Installation
Mixer 15: 220 V, monophase, 50 Hz or 60 Hz.
Consumption of electricity
Mixer 15: 0.375 kW.
Dimensions
Crate dimensions
Turbo 25: Length: 1390 mm / 54.72 in, Width: 1035 mm / 40.75 in, Height: 1495 mm / 58.86 in
Crate dimensions
Turbo 25: Length: 1390 mm / 54.72 in, Width: 730 mm / 28.74 in, Height: 1320 mm / 51.97 in
Equipment Dimensions
Flex Unmold Tank: Width: 800 mm / 31.5 in, Height: 710 mm / 27.95 in, Length: 800 mm / 31.5 in
Equipment Dimensions
Flex Unmold Tank: Width: 750 mm / 29.53 in, Height: 550 mm / 21.65 in, Length: 750 mm / 29.53 in
Crate dimensions
Mixer 15: Width: 405 mm / 15.94 in, Height: 760 mm / 29.92 in, Length: 620 mm / 24.41 in
Equipment Dimensions
Mixer 15: Width: 350 mm / 13.78 in, Height: 700 mm / 27.56 in, Length: 570 mm / 22.44 in
Crate dimensions
New Sealer: Width: 370 mm / 14.57 in, Height: 250 mm / 9.84 in, Length: 890 mm / 35.04 in
New Sealer: Width: 320 mm / 12.6 in, Height: 200 mm / 7.87 in, Length: 840 mm / 33.07 in
Crate dimensions
TR 5: Width: 660 mm / 25.98 in, Height: 1390 mm / 54.72 in, Length: 1010 mm / 39.76 in
Equipment Dimensions
TR 5: Width: 630 mm / 24.8 in, Height: 1250 mm / 49.21 in, Length: 1000 mm / 39.37 in
Crate dimensions
TR 10: Width: 1200 mm / 47.24 in, Height: 1900 mm / 74.8 in, Length: 1250 mm / 49.21 in
TR 10: Width: 1050 mm / 41.34 in, Height: 1050 mm / 41.34 in, Length: 1750 mm / 68.9 in
Weight
Gross Weight with crate
Turbo 25: 250 kg / 551 lbs.
Net Weight
Turbo 25: 160 kg / 353 lbs (without fluid and molds) - 303 kg / 668 lbs (with fluid and molds).
Net Weight
Flex Unmold Tank: 25 Kg / 55 lbs.
Gross Weight with crate
Mixer 15: 35 Kg / 77 lbs.
Net Weight
Mixer 15: 19,5 Kg / 43 lbs.
Net Weight
New Sealer: 9 kg / 20 lbs.
Production
Production Capacity
Turbo 25: * 700 to 900 ice pops per hour**; or 350 to 450 paletas per hour***; or up to 300 coconut water bars/h****.
Condensation
Water or Air.
Production Capacity
Mixer 15: Maximum mixing volume*****: Up to 8 liters (2 gallons) of syrup in beat. Internal volume******: 15 liters (3.96 gallons).
Turbo Combo: Artisanal Ice Pop Producers, Cooling Towers, Freezing, Mix Preparation and Crushers, Mixers, Packaging and Filling, Sealing Machine
* The production disclosed depends on the recipe used, the shape of the mold (standard: Brida mold, 63ml), the cooling solution type and the frequency of the machine. Air cooled machines production depends on the climatic conditions of the location where the machine is installed. 50 Hz machines may produce up to 20% less than reported. ** Considering molds with 28 cavities of 63ml and input 60Hz. *** Considering molds with 26 cavities of 123ml and input 60Hz. **** Considering molds with 16 cavities of 200ml and input 60Hz. ***** Maximum amount of mixture that can be used to prevent spillage during stirring and incorporation. ****** Total amount of liquids supported by the container.
