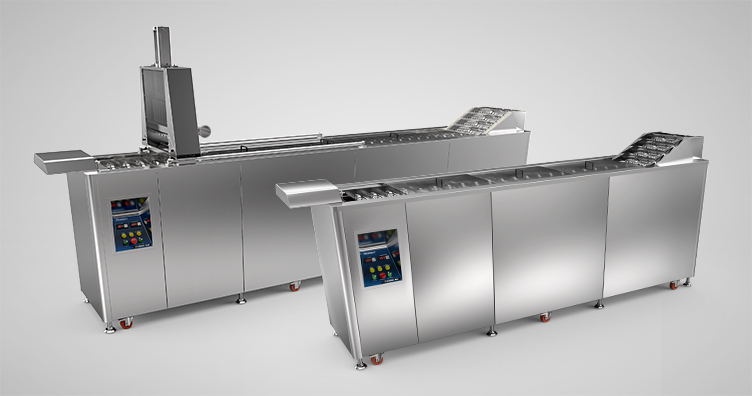

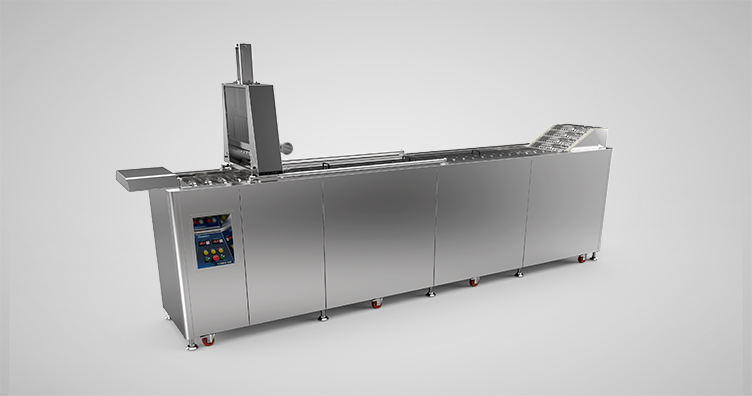

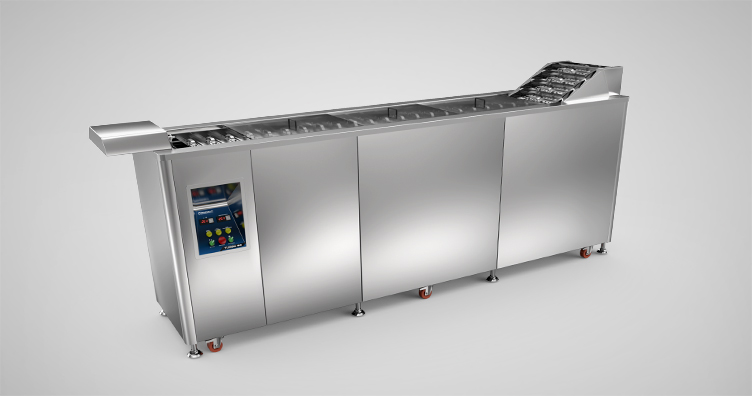

Turbo 80/100 - Industrial Ice Pop Producer Machines

  • Picolé
  • Gelo de Coco
Automatic ice pop machine
Turbo 80: up to 2500 | Turbo 80: up to 700; Turbo 100: up to 4500 ice pops/h | Turbo 100: up to 1200 coconut water bar/h
Ask for a quote
  • Eco
About Turbo 80/100 - Industrial Ice Pop Producer Machines
Videos
Suggested Use
Advantages
Technical data
Turbo 80: up to 2500 | Turbo 100: up to 4500 ice pops/h; Turbo 80: up to 700 | Turbo 100: up to 1200 coconut water bar/h

*This machine is not certified by ETL/UL/NSF rules.
*Please check the laws in your country about food preparation before finish your purchase.

Production:
Turbo 80: 1800 to 2400 ice pops / hour.*
Turbo 100: 3500 up to 4500 ice pops / hour.*

Turbo 80: up to 700 coconut water bar / hour.*
Turbo 100: up to 1200 coconut water bar / hour.*

*The production of the equipment varies according to the recipe used, the volume of the ice pops and the climatic and installation conditions of the places where the machine will be located.

Automatic dosage of the moulds (optional).

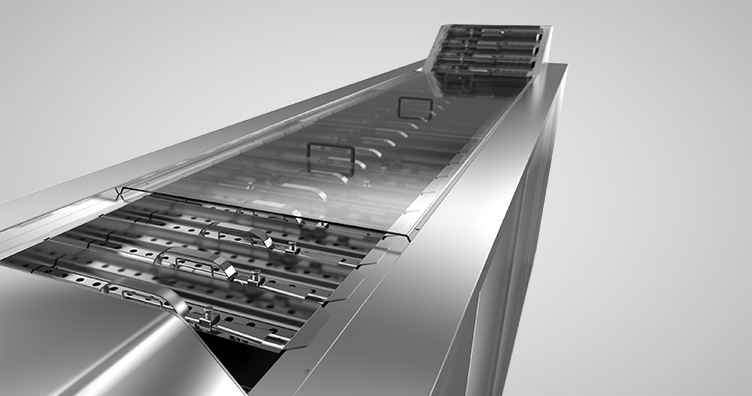

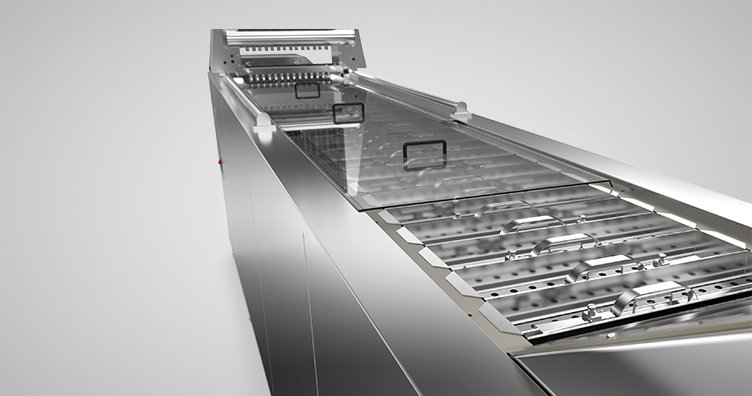

Automatic system for extraction and movement of the moulds.

Turbo 80: Works with 22 moulds in the tank and 6 in the ramp. (moulds 105 mm / 4.13 in wide)
Turbo 100: Works with 32 moulds in the tank and 5 in the ramp. (moulds 105 mm / 4.13 in wide)

Agitation by pump.

Semi-hermetic compressor, low noise level and high energy savings.

Equipped with rotary wheels in order to facilitate transportation, handling and cleaning.

Power supply: 220 V or 380 V, 3-phase, 50 Hz or 60Hz.

Shell in tube water condenser system.

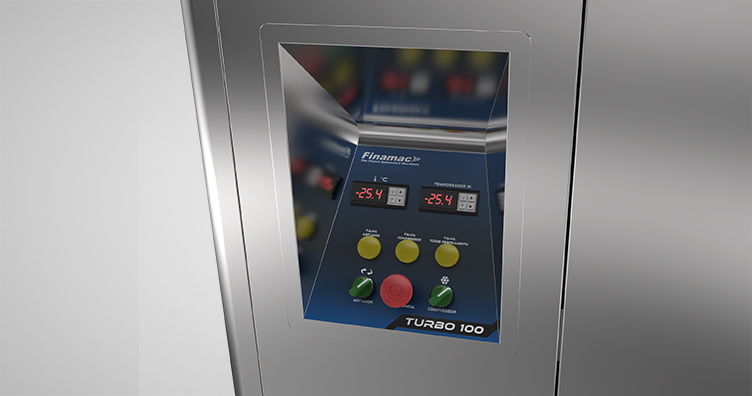

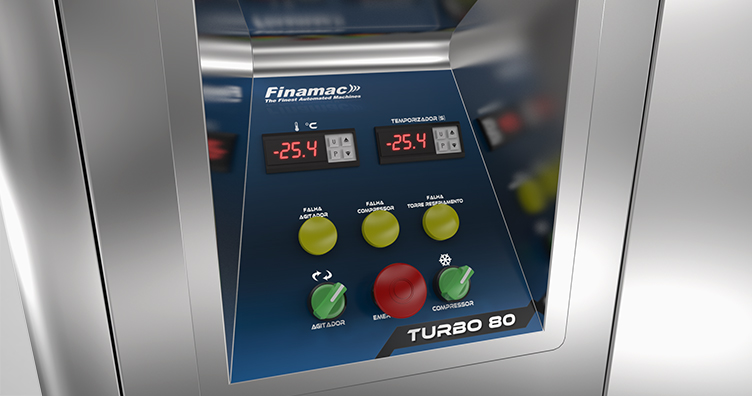

Popsicle production digitally displayed.

R404A ecological refrigeration gas.

Reduced maintenance costs.



Water condensation equipment: requires a cooling tower.



Turbo 80 Spec Sheet

Turbo 100 Spec Sheet

Benefits

Our differential is your satisfaction.

When purchasing our products, we guarantee excellence in quality and support.
We provide after sales with qualified and dedicated specialists.

1. The attractive cost/benefit rate in the market.

2. Significant labor reduction, due to optional automatic devices.

3. Easy to operate, install, and transport.

4. Modular design allows production to increase or decrease, according to demand.

5. Occupies only 60% of the normal area used by a conventional equipment.

6. The latest technology in popsicle machines.

Technical Details
Electrical Installation
Turbo 80: 220 V, Threephase, 50 Hz or 60 Hz. Turbo 100: 220 V or 380 V, Threephase, 50 Hz or 60 Hz.
Consumption of electricity
Turbo 80: 13 kW. Turbo 100: 29 kW.
Dimensions
Crate dimensions
Turbo 80: Width: 1100 mm / 43.31 in, Height: 1600 mm / 62.99 in, Length: 3650 mm / 143.7 in

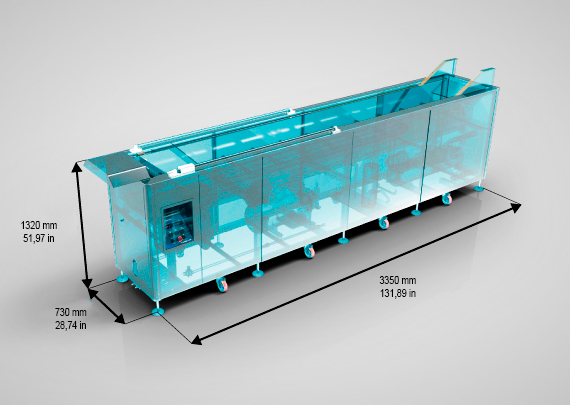

Equipment Dimensions
Turbo 80: Width: 730 mm / 28.74 in, Height: 1320 mm / 51.97 in, Length: 3350 mm / 131.89 in
Crate dimensions
Turbo 100: Width: 1150 mm / 45.2 in, Height: 1600 mm / 62.99 in, Length: 4700 mm / 185.04 in
Equipment Dimensions
Turbo 100: Width: 730 mm / 28.74 in, Height: 1320 mm / 51.97 in, Length: 4300 mm / 169.29 in
Weight
Gross Weight with crate
Turbo 80: 840 kg / 1851.18 lb.
Turbo 100: 1230 kg / 2711.69 lb.
Net Weight
Turbo 80: 725 kg / 1598.34 lb (without fluid and molds) – 1076 kg / 2371.87 lb (with fluid and molds). Turbo 100: 1000 kg / 2204.62 lb (without fluid and molds) – 1511 kg / 3332.98 lb (with fluid and molds)
Production
Production Capacity
Turbo 80*: 1800 to 2400 ice pops per hour**; or 1000 to 1800 paletas per hour***; or up to 700 coconut water bar****. Turbo 100*: 3500 to 4500 ice pops per hour**; or 1550 to 3000 paletas per hour***; or up to 1200 coconut water bar/h****.
Condensation
Water
Turbo 80/100 -  Industrial Ice Pop Producer Machines
* The production disclosed depends on the recipe used, the shape of the mold (standard: Brida mold, 63 ml / 0.02 gal), the cooling solution type and the frequency of the machine. Air cooled machines production depends on the climatic conditions of the location where the machine is installed. 50 Hz machines may produce up to 20% less than reported. ** Considering molds with 28 cavities of 63 ml / 0.02 gal and input 60Hz. *** Considering molds with 26 cavities of 123 ml / 0.03 gal and input 60Hz. **** Considering molds with 16 cavities of 200 ml / 0.05 gal and input 60Hz.
