PopLine - Automatic Ice Pop Machine

  • Picolé
Automatic Ice Pop Machine
4000 to 6000 Ice Pops/h
Ask for a quote
  • Eco
About PopLine - Automatic Ice Pop Machine
Videos
Suggested Use
Advantages
Technical data

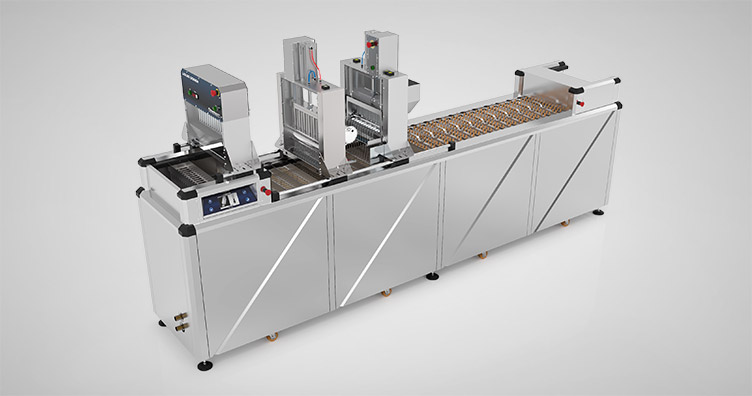

Automatic Popsicle machine.

*This machine is not certified by ETL/UL/NSF rules.
*Please check the laws in your country about food preparation before finish your purchase.

PRODUCTION: 4000 to 6000 ice pops/h*

*Production depends on the climatic conditions of the location where the machine is installed.

Automatic dosage of the popsicle moulds (optional).

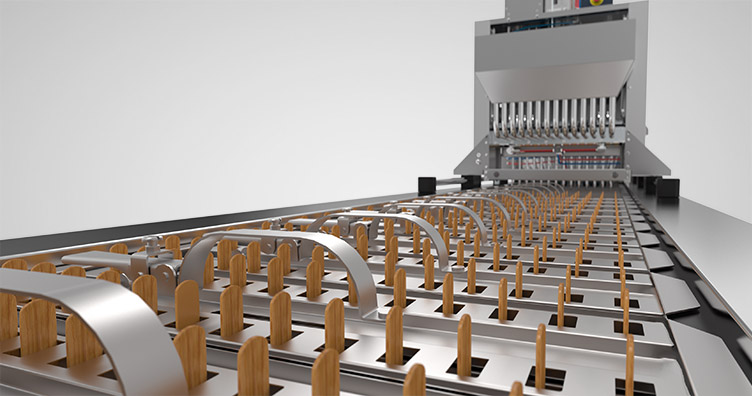

Automatic system for extraction and movement of the moulds.

It`s the unique equipment that requires only 30 moulds of 28 popsicles cavities each to work and reaches the production of up to 6000 popsicles / hour..

Agitation by pump.

Semi-hermetic compressor, low noise level, and high energy savings.

Equipped with rotary wheels in order to facilitate transportation, handling and cleaning.

Power supply: 220V or 380V, 3-phase, 50Hz or 60Hz.

Shell in Tube water condenser system.

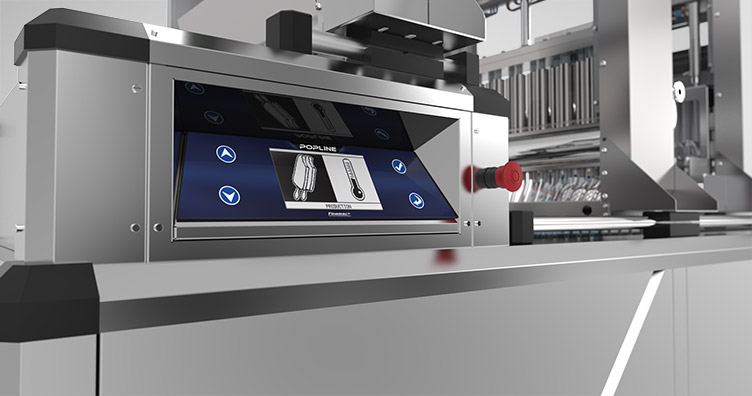

Popsicle production digitally displayed.

R 452 ecologic refrigeration gas.

Reduced maintenance costs.

Fluid Volume: 290 Liters / 76.61 gal.

Number of Forms: 30 Forms with 28 cavities in the tank and 02 in the entrance ramp.

Dosers: from 1 to 3 dosers.

Insertion and extraction of forms: Automated system.

**Measured production with 63ml / 0.02 gal mold, Brida model. For different volumes or formats the hourly production can vary. The production in 50Hz will have a reduction of up to 20%.



Water condensation equipment: requires a cooling tower.



PopLine Spec Sheet

Benefits

Our differential is your satisfaction.

When purchasing our products, we guarantee excellence in quality and support.
We provide after sales with qualified and dedicated specialists.

1. The best cost/benefit rate in the market.

2. Significant labor reduction, due to the optional automatic devices.

3. Easy to operate, install and transport.

4. Modular design allows production to increase or decrease, according to demand.

5. Occupies only 60% of the normal area used by a conventional equipment.

6. The latest technology in popsicle machines.

Technical Details
Electrical Installation
220 V or 380 V, Threephase, 50 Hz or 60 Hz.
Consumption of electricity
23 kW.
Dimensions
Crate dimensions
Width: 1190 mm / 46.85 in, Height: 1850 mm / 72.83 in, Length: 4500 mm / 177.17 in
Equipment Dimensions
Width: 1140 mm / 44.88 in, Height: 1700 mm / 66.93 in, Length: 4240 mm / 166.93 in
Weight
Gross Weight with crate
1250 kg / 2755.78 lbs
Net Weight
1030 kg / 2270.73 lbs (without fluid and molds) – 1530 kg / 3373.07 lbs (with fluid and molds).
Production
Production Capacity
* 4000 to 6000 ice pops per hour** or 2050 to 3600 paletas per hour***.
Condensation
Water
PopLine - Automatic Ice Pop Machine
* The production disclosed depends on the recipe used, the shape of the mold (standard: Brida mold, 63ml / 0.02 gal), the cooling solution type and the frequency of the machine. 50 Hz machines may produce up to 20% less than reported. ** Considering molds with 28 cavities of 63ml / 0.02 gal and mix entering at 4°C / 39.2°F. *** Considering molds with 26 cavities of 123ml / 0.03 gal and mix entering at 4°C / 39.2°F.
