Ice Pop Mini Plant - Set of Machines to Produce Ice Pops

  • Picolé
  • Gelo de Coco
Set of machines to produce ice pops
200-250 ice pops/h; or up to 70 coconut water bars/h
Ask for a quote
  • American Approved Certification
  • Eficiência Energética
  • Não usa Fluidos Inflamáveis
  • Nova Linha Black Geração
  • Eco
About Ice Pop Mini Plant - Set of Machines to Produce Ice Pops
Videos
Suggested Use
Advantages
Technical data
Ice Pop Mini Plant is a complete machine kit for facilitating the speedy process of producing ice pops.

The kit consists of:

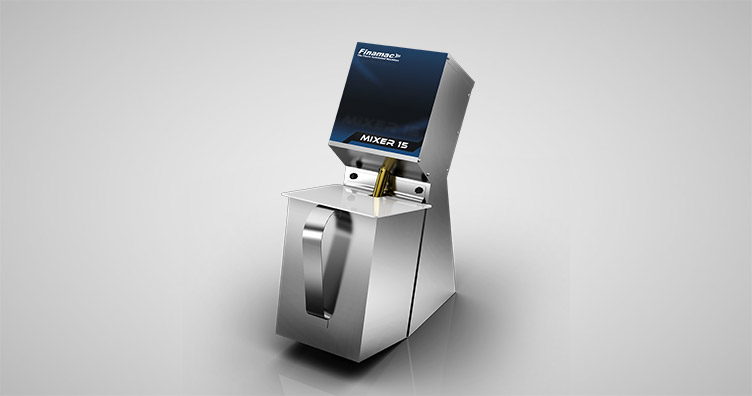

1. Blender / Mixer Emulsor 15: With a capacity to beat up to 8L / 2.1 gal of syrup, the mixer 15 is intended for small producers who are just starting out in this business, or professionals who wish to increase their production and profitability. Its patented helix leaves the milk mixture well homogenized and with a greater incorporation of air, causing softer popsicles and more profitable. Mixer 15 incorporates 10% - 20% of air into the mixture, providing greater efficiency in production and thus increases profitability. All these features guarantee top quality, not only in appearance, but also in texture, flavor, color, aeration, preservation, resistance to melting, and other features easily perceived by the most discerning customers. This device is easy to operate, install, and transport.

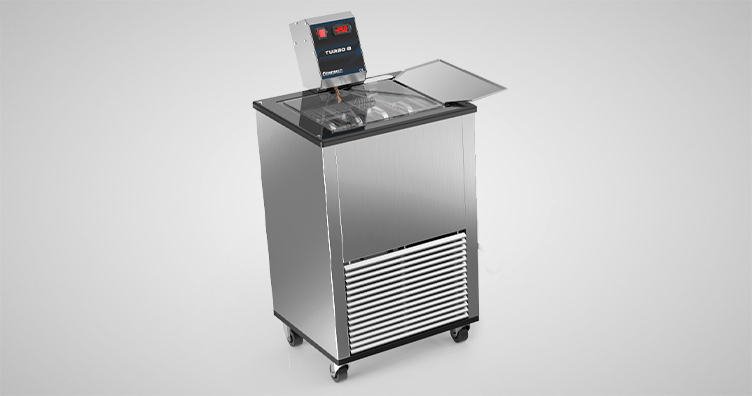

2. Producer Popsicles Turbo 8: A semi-automatic machine that manufactures water or milk-based popsicles, working with mono-phase power - residential or commercial. The Turbo 8 helps many entrepreneurs start a promising business. It is also designed for professionals who wish for a modular increase in production, with the ability to add more equipment as needed. This machine occupies 60% less space used by conventional equivalent equipment. The Turbo 8 is unsurpassed when it comes to delivering successful results for novices in the ice cream industry. It is fast, convenient, and requires no prior knowledge about making popsicles. Its unique system allows greater production speed and is the final word in technology. It’s easy to operate, install, and transport.

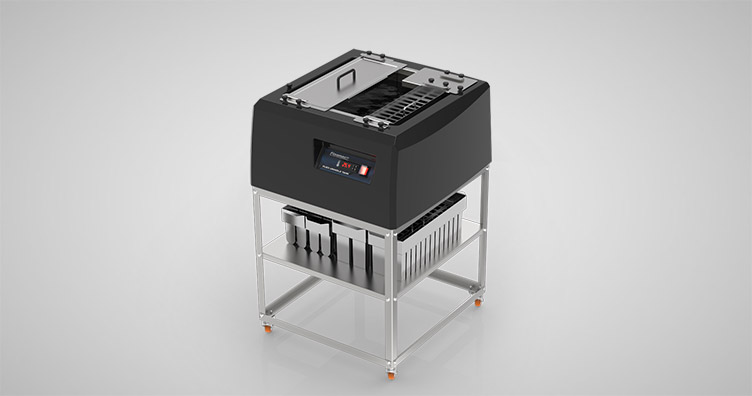

3. Flex Unmold Tank: It consists of a tank of warm water where the ice pops are placed for a few seconds and the temperature is controlled electronically. The thermally controlled process of the ice pop mold being dipped into the tank for a few seconds causes a heat shock that

allows the ice pops to be loosened from their molds almost instantly.

The tank can be used with or without a stainless steel base (optional). If used without base, it can be placed directly on a workbench or used as a table top.

Another added feature to this equipment is the introduction of vats to be placed where melted chocolate can remain and the ice pops can be dipped (ice pop SKIMO).

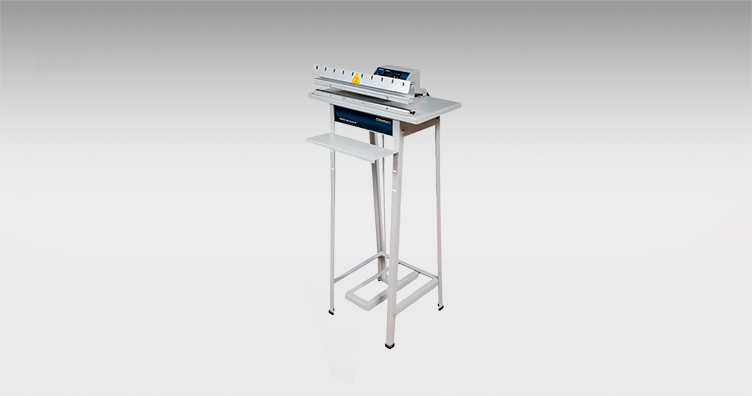

4. Sealing: A compact machine used in several segments. The treadle drive leaves your hands free to work with the products. Has the capacity seal up to a width of 20cm / 7.87in. Works well with clear polypropylene plastics, laminated, bio-oriented, etc. It has several advantages, such as being extremely economical - it only requires an average of 0.30 kW / h.

* Equipment with air condensation has its production reduced by 10% to 50%, from an ambient temperature above 28 ° C to 45 ° C / 82.4°F to 113°F.

*Production depends on the climatic conditions of the location where the machine is installed.

* Images merely illustrative. The quantity and type of moulds may vary, as may the model of the unmolder.

*Please check the laws in your country about food preparation before finish your purchase.



Mixer 15 Spec Sheet

Turbo 8 Spec Sheet

Flex Unmold Tank Spec Sheet

Sealer Spec Sheet

Benefits

Our differential is your satisfaction.

When purchasing our products, we guarantee excellence in quality and support.
We provide after sales with qualified and dedicated specialists.

A complete set of machines for manufacturing popsicles. It also provides the ability to produce various other products, such as skimo, half chocolate coating, Napolitan (3 flavours), and decorated popsicles.

With the addition of just a few accessories, several more products can be made: ice cream bonbons/chocolate coating, free stick ice cream, and models with different shapes.

Technical Details
Electrical Installation
Turbo 8: 220 V, Monophase, 50 Hz or 60 Hz.
Consumption of electricity
Turbo 8: 2 kW.
Electrical Installation
Flex Unmold Tank: 220 V, Monophase, 60 Hz.
Consumption of electricity
Flex Unmold Tank: 9 kW.
Electrical Installation
Mixer 15: 220 V, Monophase, 50Hz or 60 Hz.
Consumption of electricity
Mixer 15: 0.375 kW.
Dimensions
Crate dimensions

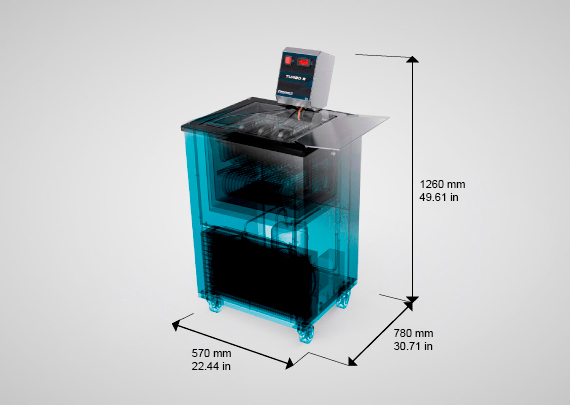

Turbo 8: Length = 940 mm / 37.01 in, Width = 900 mm / 35.43 in, Height = 1400 mm / 55.12 in.
Equipment Dimensions
Turbo 8: Length = 780 mm / 30.71 in, Width = 570 mm / 22.44 in, Height = 1260 mm / 49.61 in.
Crate dimensions
Flex Unmold Tank: Width: 800 mm / 31.5 in, Height: 710 mm / 27.95 in, Length: 800 mm / 31.5 in
Equipment Dimensions
Flex Unmold Tank: Width: 750 mm / 29.53 in, Height: 550 mm / 21.65 in, Length: 750 mm / 29.53 in
Crate dimensions
Mixer 15: Width: 405 mm / 15.94 in, Height: 760 mm / 29.92 in, Length: 620 mm / 24.41 in
Equipment Dimensions
Mixer 15: Width: 350 mm / 13.78 in, Height: 700 mm / 27.56 in, Length: 570 mm / 22.44 in
Crate dimensions
New Sealer: Width: 370 mm / 14.57 in, Height: 250 mm / 9.84 in, Length: 890 mm / 35.04
Equipment Dimensions
New Sealer: Width: 320 mm / 12.6 in, Height: 200 mm / 7.87 in, Length: 840 mm / 33.07 in
Weight
Gross Weight with crate
Turbo 8: 130 kg / 286,60 lb.
Net Weight
Turbo 8: 71 kg / 156,53 lb (without fluid and molds) - 116 kg / 255,73 lb (with fluid and molds).
Gross Weight with crate
Flex Unmold Tank: 25 Kg / 55,12 lb.
Gross Weight with crate
Mixer 15: 35 Kg / 77,16 lb.
Net Weight
Mixer 15: 19.5 Kg / 42,99 lb.
Net Weight
Sealer: 9 kg / 19,84 lb.
Production
Production Capacity
Turbo 8*: 150 to 250 ice pops per hour**; or 80 to 150 paletas per hour***; or up to 70 coconut water bars/h****.
Condensation
Turbo 8: Air.
Production Capacity
Mixer 15: Maximum mixing volume: Up to 8 liters (2 gallons) of syrup in beat. Internal volume: 15 liters (3.96 gallons).
Ice Pop Mini Plant - Set of Machines to Produce Ice PopsIce Pop Mini Plant - Set of Machines to Produce Ice Pops
* The production disclosed depends on the recipe used, the shape of the mold (standard: Brida mold, 63ml), the cooling solution type and the frequency of the machine. Air cooled machines production depends on the climatic conditions of the location where the machine is installed. 50 Hz machines may produce up to 20% less than reported. ** Considering molds with 28 cavities of 63ml and input 60Hz. *** Considering molds with 26 cavities of 123ml and input 60Hz. **** Considering molds with 16 cavities of 200ml and input 60Hz.
