Aligner - Automatic Popsicle Sticks Aligner

  • Picolé

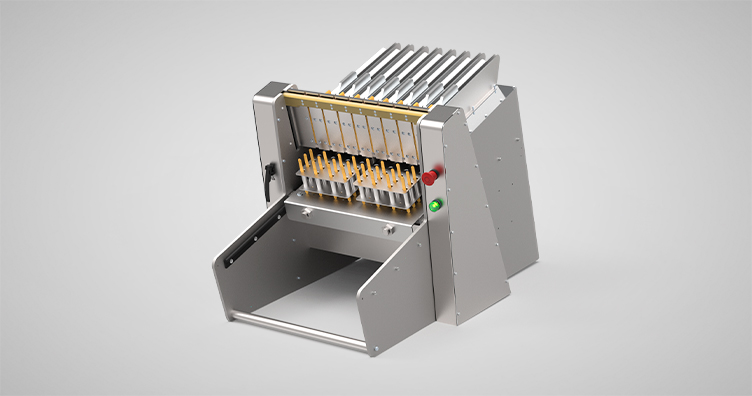

Automatic popsicle sticks aligner
From 3000 up to 6000 sticks/hour
Ask for a quote
About Aligner - Automatic Popsicle Sticks Aligner
Videos
Suggested Use
Advantages
Technical data
Automates the process of aligning the popsicle sticks before they are inserted into the popsicles.

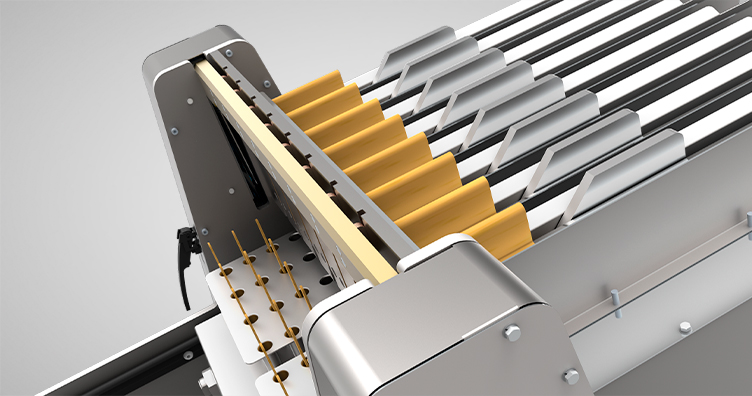

The aligner is placed on this device to allow the popsicle sticks to be positioned sequentially and automatically, eliminating manual labor.
It is 90% time-saving, decreasing the need for more people in production. To do this, simply feed the equipment with sticks and start the machine.

Thus, with sticks quickly placed on the aligner, the equipment operator will hold them (already aligned) in a device called a "puller" and enter them in their popsicle molds, to be dipped in alcohol or glycol for freezing.

After freezing the sticks will be stuck and simply remove the popsicles in fashion.
The total production time drops sharply without the need for additional manpower. The manual process of inserting sticks in the aligner without the help of this equipment is time consuming, painstaking, repetitive and occupies much of the time needed to works on the production line.



Aligner Spec Sheet

Benefits

Our differential is your satisfaction.

When purchasing our products, we guarantee excellence in quality and support.
We provide after sales with qualified and dedicated specialists.

For popsicle production from 750 pieces / hour as TURBO 25TURBO 80 e TURBO 100.

1. Accelerates the alignment of popsicle sticks.

2. Eliminates labor with only needing to feed sticks into the aligner.

3. For larger production of popsicles the time saved is essential.

4. It is an electrical apparatus with pneumatic automatic return, easy to install and use.

5. It successfully serves small and medium producers.

6. It is a guaranteed investment with a quick return.

Technical Details
Electrical Installation
220V, Monophase, 50/60 Hz
Consumption of electricity
0.3 Kw
Dimensions
Crate dimensions
Length = 46.8 Inches / 1188.72 mm, Width = 29.64 Inches / 752.64 mm, Height = 42.9 Inches / 1089.66 mm.

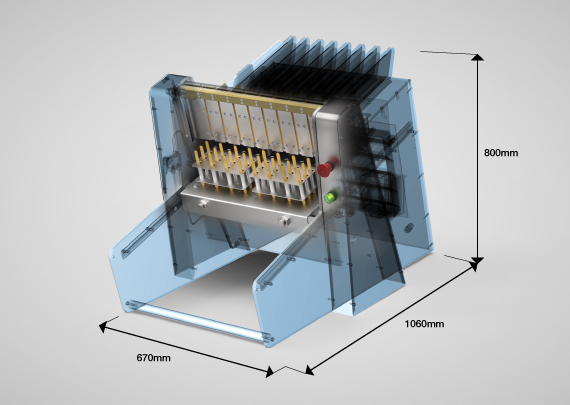

Equipment Dimensions
Length = 41.34 Inches / 1050.04 mm, Width = 26,13 Inches / 663.7 mm, Height = 31.98 Inches / 812.27 mm.
Weight
Gross Weight with crate
120 Kg / 264.55 lbs
Net Weight
78 Kg / 171.96 lbs
Production
Production Capacity
From 3000 up to 6000 sticks/hour
